Atrium Door Features

A keyed Schlage® flair handleset with a Maximum Security thumbturn deadbolt is included. Choose from bright brass, antique brass, satin nickel or aged bronze finish. Optional Lifetime finish available.

The lock area is reinforced with a 20-gauge steel security plate for added strength.

---

Suspended by ball bearing rollers this top-hung heavy-duty aluminum screen frame reduces binding, creating effortless operation. Screen frames are available in all 16 colors.

---

Spring-loaded latch system automatically engages upon closing. Latch also includes interior locking feature. NEW BetterVue™ fiberglass screen is standard. Heavy-duty fiberglass, aluminum or SeeVue stainless steel screen is optional.

---

The Sahara™ heavy-duty extruded sill has a 1½" wide thermal barrier wood-like riser that will not rot or warp and is non-conductive. Available in Anodized Nickel finish or Anodized Bronze finish.

Features per Door Series

Legacy Steel Doors

Legacy Steel features add up to a professional-class product. Whether you select Legacy Woodgrain Textured Steel or Smooth Steel, the entry systems will provide an elegant, durable and energy efficient addition to any home.

1. A
   Composite top endcaps increase rigidity and energy efficiency.
2. B
   Special adhesives/thermal barrier reduce heat and cold transfer, while the exclusive tab and slot system of mechanical interlocks gives the door exceptional structural strength.
3. C
   ProVia doors are foam filled by a computer driven process that ensures the optimal foam fill for maximum energy efficiency and strength.
4. D
   To reinforce the lock and deadbolt area, a rigid composite lock block is added.
5. E
   The edges and face skin of our steel doors are one continuous piece of steel for strength and durability.
6. F
   The 20-gauge steel doors give you 49% more galvannealed steel than a standard 24-gauge door.
7. G
   Composite bottom endcaps increase rigidity and energy efficiency.
8. H
   Legacy steel entry systems come standard with an anodized nickel threshold with a complementary riser.

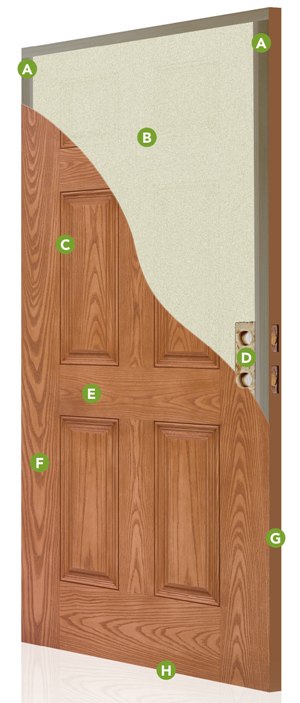

Heritage Fiberglass

Heritage Fiberglass Doors provide the strength of fiberglass and the classic look of woodgrain. The textured doors are artfully stained or painted with a durable finish that is guaranteed to last. Also Available in smooth finish.

1. A
   17⁄8" Finger-jointed, 2-ply solid oak laminated stiles for both hinge and strike sides are proven to provide increased rigidity and structural integrity.
2. B
   Polyurethane core reduces energy loss.
3. C
   Improved definition panel profile creates excellent shadow lines and distinct panel designs.
4. D
   Lock area is reinforced to provide a solid mounting surface for decorative hardware.
5. E
   Specially engineered fiberglass door facings will not dent and resist splitting, cracking and warping.
6. F
   Variable-depth woodgrain texture with hand-applied stain imitates a wood door appearance.
7. G
   Square-edge design offers an attractive wood door appearance.
8. H
   A high-performance, composite material is utilized on all Heritage fiberglass bottom rails, giving excellent rot-resistance.

Signet Fiberglass Doors

Signet fiberglass doors have taken fiberglass entry systems to the next level. The embossed woodgrain is an astonishingly accurate representation of real wood. Signet fiberglass doors are available in Cherry, Mahogany, Oak, Fir and Knotty Alder Series, with 7 stain finishes per Series. Utilizing our exclusive DuraFuse™ Finishing System featuring P3 Fusion, ProVia's finish warranty is the best in the industry. Structurally, the Signet fiberglass door is far superior to traditional fiberglass doors. The hinge and strike stiles are a robust 2 5/8" and 4 1/4" respectively, and are dovetailed to the top and bottom rails forming an integrated frame, ensuring unmatched strength and durability.

1. A
   Stiles and rails are dovetailed and glued at each corner creating a structurally solid, integrated frame.
2. B
   The 2 5⁄8" finger-jointed 3-ply hardwood hinge stile provides superior structural integrity.
3. C
   ProVia doors are foam filled by a computer driven process that ensures the optimal foam fill for maximum efficiency and strength.
4. D
   The 4¼" finger-jointed 4-ply hardwood strike stile provides a solid mounting surface for decorative hardware and superior structural integrity. The authentic wood look is made possible by using cutting-edge nickel vapor deposition technology. Scientifically formulated compounds provide superior resistance to denting, splitting, cracking and warping.
5. E
   High-definition panel profile creates excellent shadow lines and distinct panel designs. The revolutionary DuraFuse™ Finishing System featuring P3 Fusion yields unprecedented finish durability.
6. F
   Door edge is constructed with cherry, mahogany, oak or fir wood matching the selected series. Signet fiberglass entry systems come standard with an anodized bronze threshold with a complementary riser.
7. G
   A high-performance, composite material is utilized on all Signet fiberglass bottom rails, giving excellent rot-resistance. Plugless Window Trim is standard on Signet (N/A Fir Series). The inside door frame is hand-stained or painted to match your door providing you with a consistent visual appearance.
