Ideal Platinum 3000

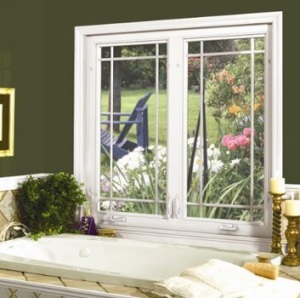

One, Two and Three Section Casements

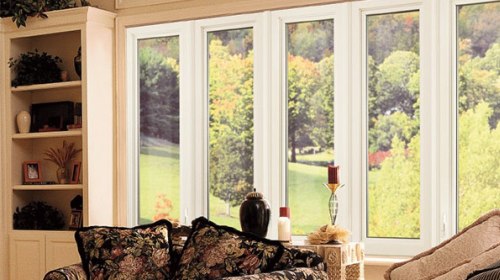

Casement windows provide sophisticated elegance that complements styles from contemporary to traditional. Clean profiles add charm and style while fusion-welded frames provide strength and durability. These windows can be hinged on either side so the sash opens outward to the left or right in a swinging motion.


Standard Features

  • Heavy duty multi-chambered extrusions provide structural integrity

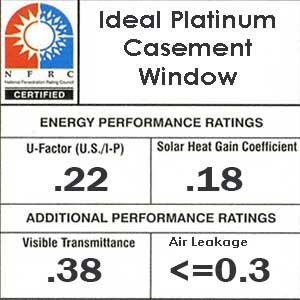

  • EMS+ glass package includes Duralite warm edge spacer for a .22 U-factor
  • Fully welded, foam filled frame and sashes add energy efficiency and comfort
  • Foam wrapped jambs reduce air leakage around window
  • E-Gard Plus coating on hardware outperforms zinc plated hardware and provides a newer look for years to come
  • Double strength glass which is heavier and far more durable than single strength
  • Heavy weatherstripping and bulb seal redcues air, water and noise infiltration
  • Continuous master frame on multi-lite units
  • Slimline design provide less vinyl frame, more glass
  • Extruded locking aluminum screen frame with heavy duty aluminum corner reinforcements and "UltraView" mesh


Dual surface, double strength LowE glass. Using two surfaces of LowE provides the same level of efficiency as a triple glazed unit. Argon Gas - more dense than air, slow down the movement of air within the 7/8" airspace, reducing the transfer of heat to cold for improved energy performance.

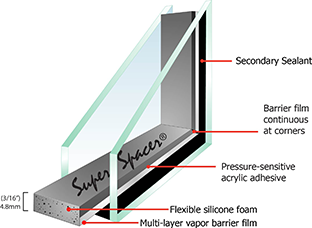

Duralite offers a new level of thermal performance to windows reducing conductivity by up to 45%. This radical improvement in thermal properties is achieved by eliminating metal and replacing over 60% of the spacer profile with air. The patented design featuring a unique composite laminating technology without the use of metal results in superior thermal and durability performance.


Cellular insulation on the frame minimizes drafts between the house and window.


Depending on the size, two, three or four keepers align the sash up against the frame tightly, ensuring security and a weathertight seal.


Stylish, fold-down handles offer a contemporary look with less interference with window treatments.


Single-lever multi-point locking system provides security and an unmatched DP-60 Structural Performance Rating.


The UltraVue invisible insect screen is an innovative screen mesh that allows you to see the view and not the screen. UltraVue provides better airflow, more clarity, and better insect protection.


All these features with one of the best warranties in the industry
